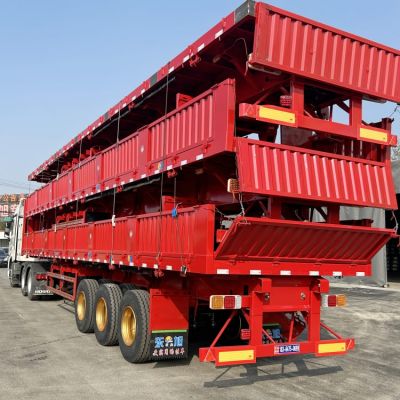

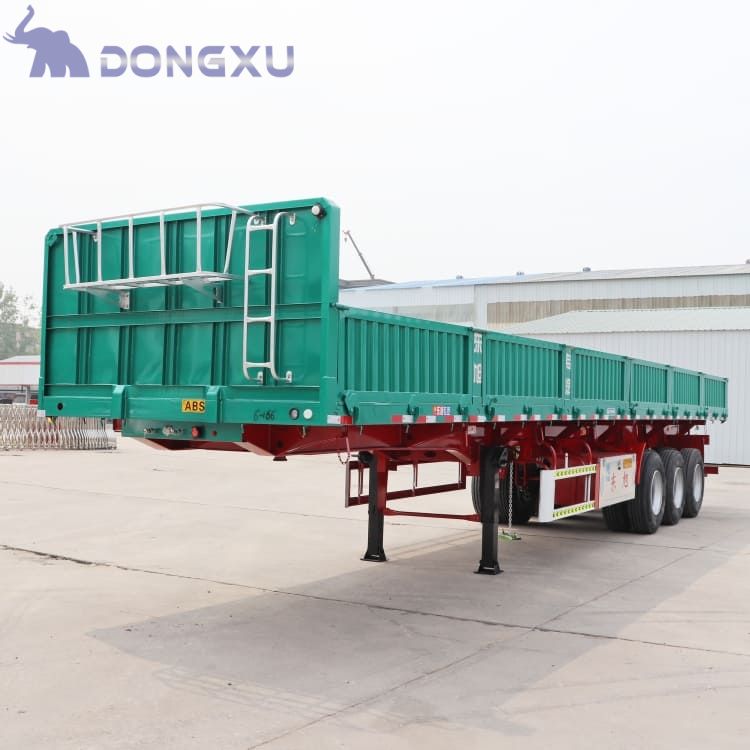

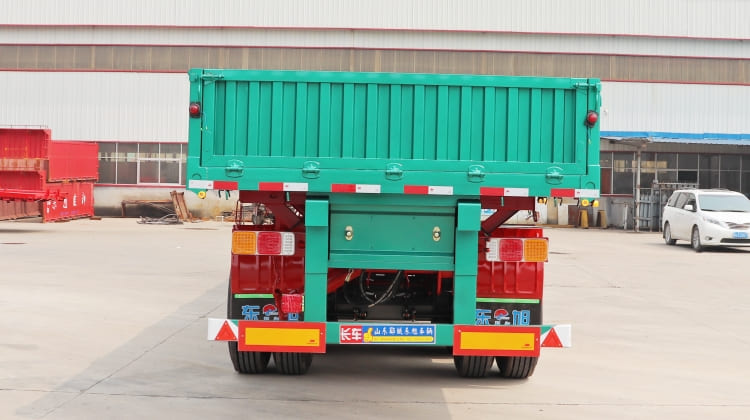

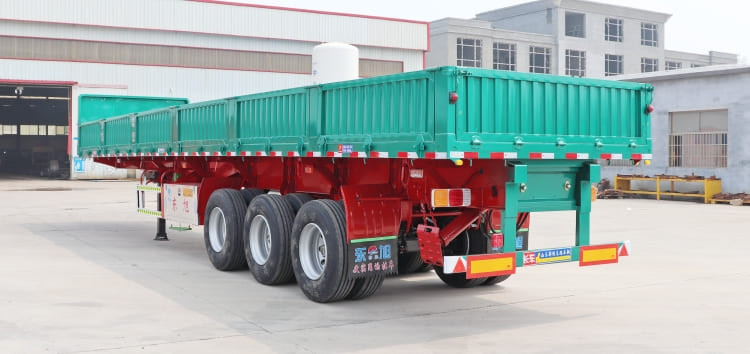

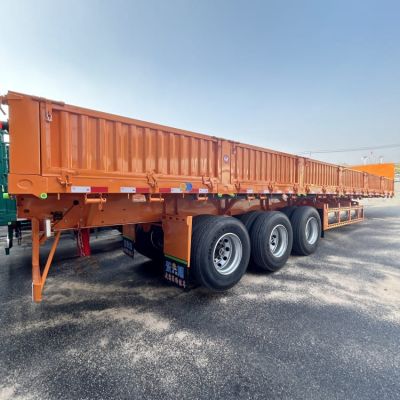

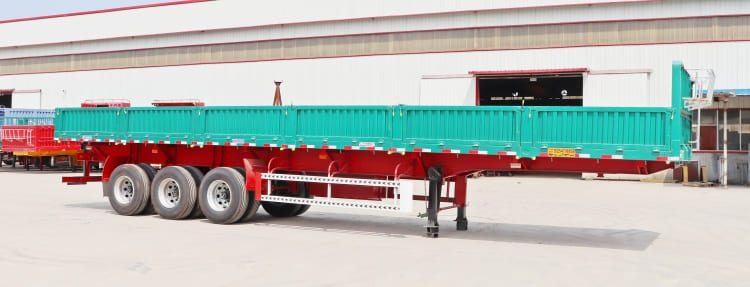

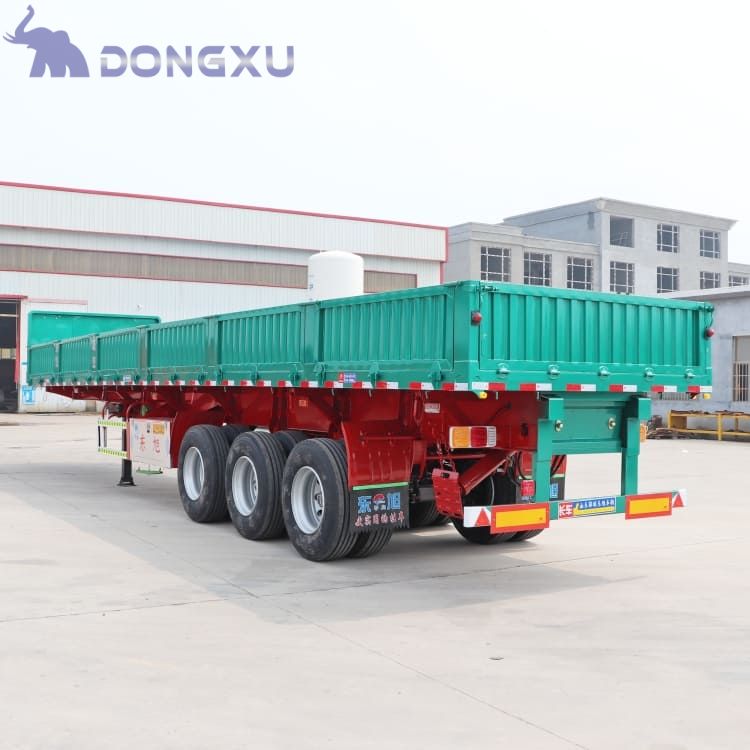

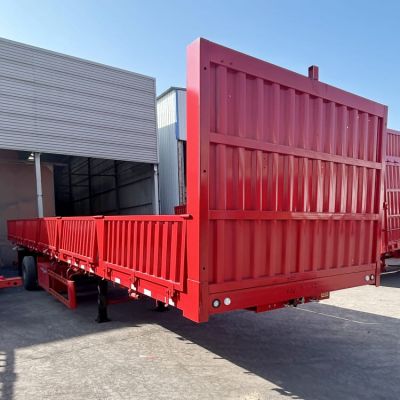

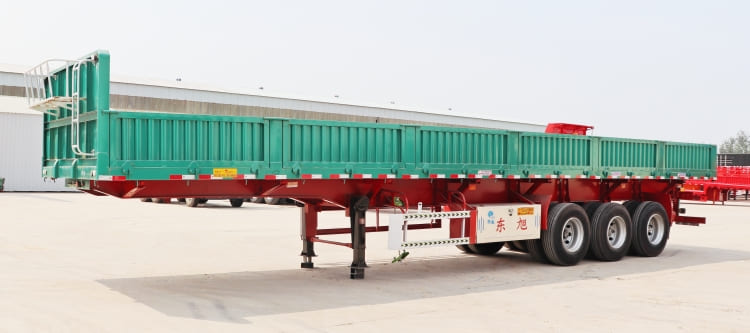

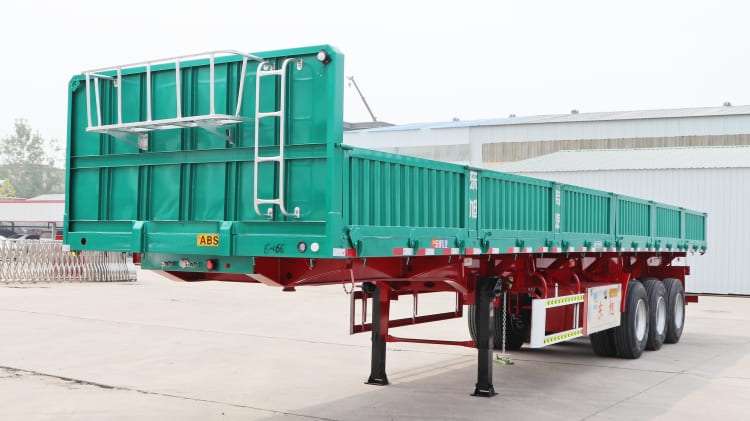

Side wall trailer is the basic and key transportation vehicle for long distance as well as short distance transport in our daily life.
3 axle side wall trailer for sale in Burundi used to transport cargo goods such as bagged cement, vegeitables and others.
The side boards of the trailer side wall can be removable and plus to include 12 units container locks with multiple usage functions as flat bed container trailer as well.
DONG XU VEHICLE produce custom-made trailer with side walls with payload 30t 40 ton 50ton 60t 70 tons and 80ton up to 100 tonnege capacity to meet different countries and clients transportation projects.
And also 3 axle side wall semi trailer height can be with 60cm 80cm 1m 1.2m 1.3m 1.5m on your trailers.
Dongxu 3 axle side wall trailer for sale in Burundi use well-known brand parts to ensure the quality of trailers.
Dongxu trailer with side walls are all factory direct sales with competitive prices and excellent quality.
The frame of the side wall semi trailer for sale in Burundi, is a through-beam structure, and the longitudinal beam adopts a straight type or a gooseneck type.
The trailer side wall longitudinal beam is welded by automatic submerged welding, the frame is treated by shot peening, and the 60 ton side wall trailer for sale in Burundi cross beam penetrates the longitudinal beam and is welded as a whole.
The trailer with side walls longitudinal beam is welded by automatic submerged welding, the frame is treated by shot peening, and the cross beam penetrates the longitudinal beam and is welded as a whole.
In addition, the whole 60 ton side wall trailer for sale in Burundi adopts a large number of prefabricated structures, which further improves the convenience and timeliness of maintenance.
Dimension(mm): 13000mmx2650mmx3050mm
Loading capacity(ton): 60-80T
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate

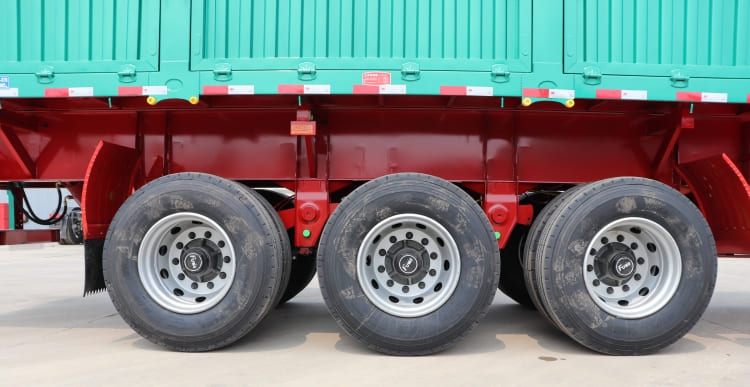

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Other Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension/ Airbag suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Other brand 28tons(double-speed)
Brake Chamber: WABCO
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Package :Shipping method: By bulk cargo carrier, RORO or 40HQ container
