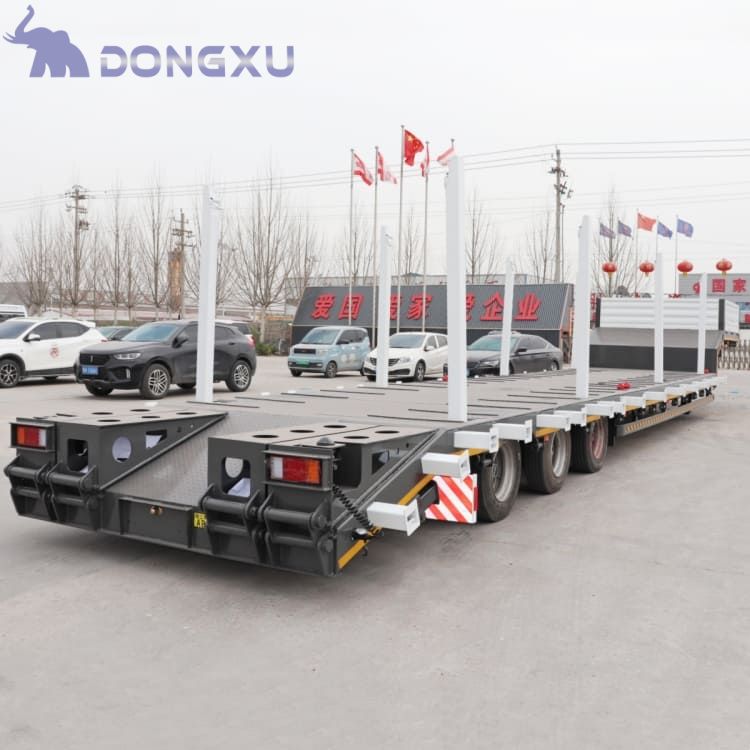

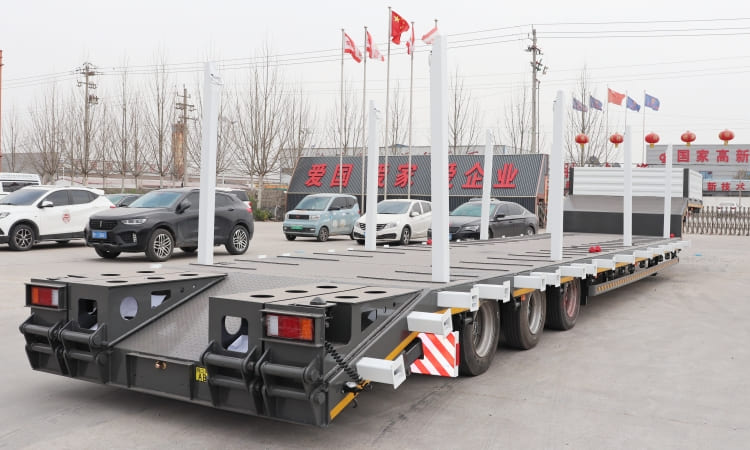

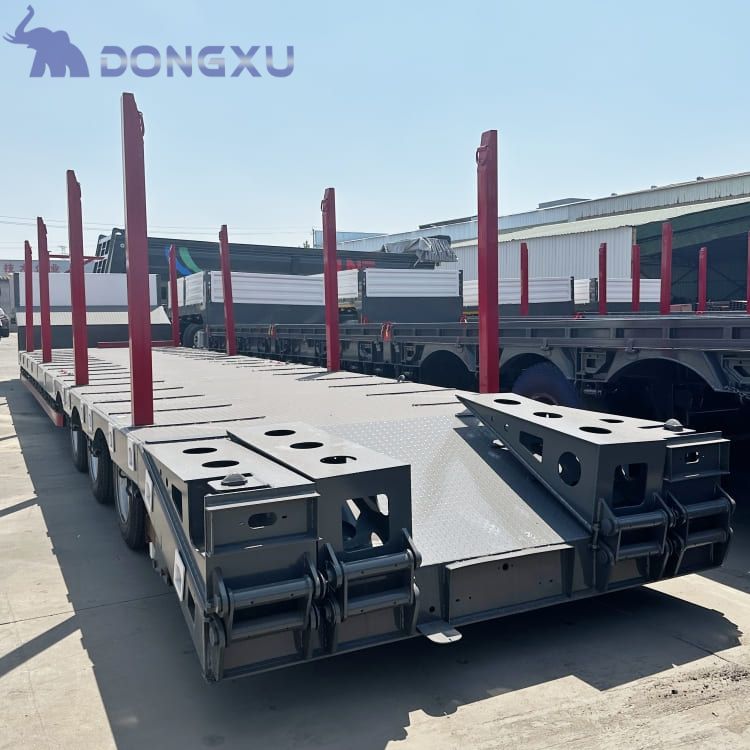

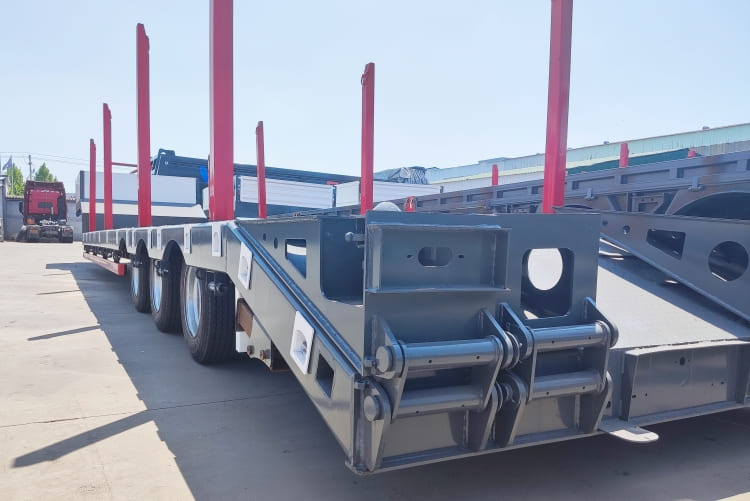

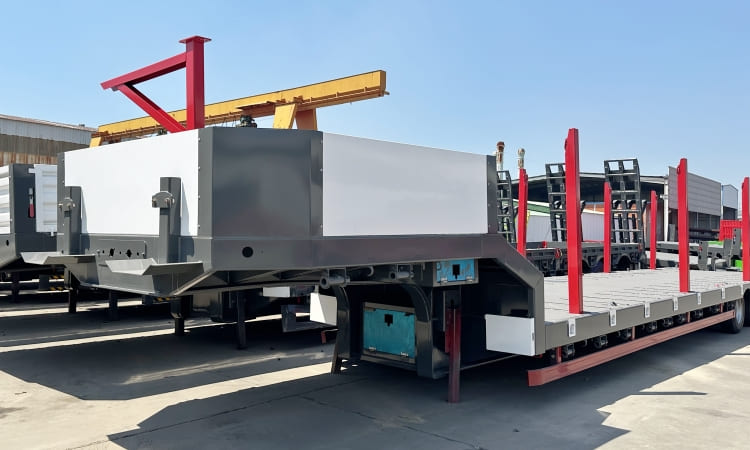

Dong Xu multi function 100 ton low bed trailer for Sale in Ethiopia can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material.
DONG XU multi function tri axle low bed trailer for sale in Ethiopia are widely used in heavy machines transportation.
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 80-100T

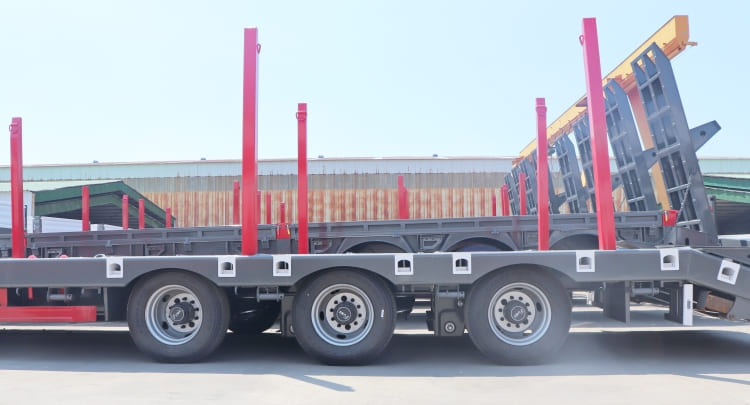

Axle: 3 axle, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

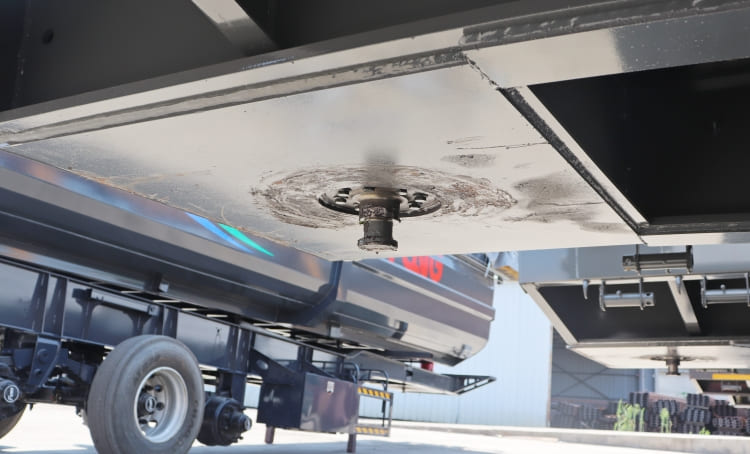

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

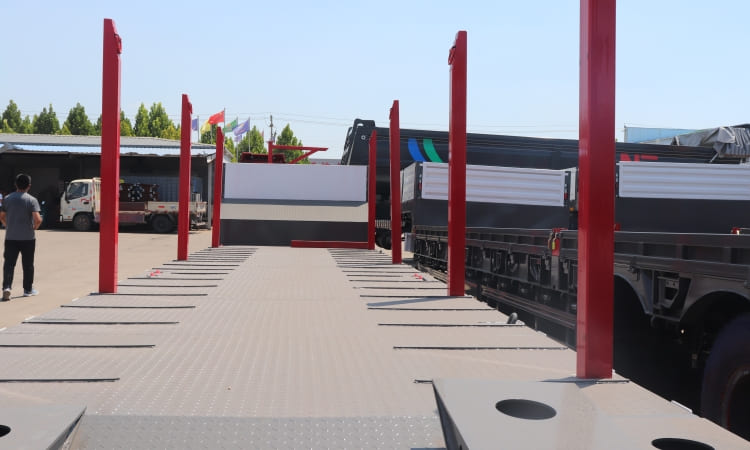

Bottom Platform: 5mm thick checkered plate

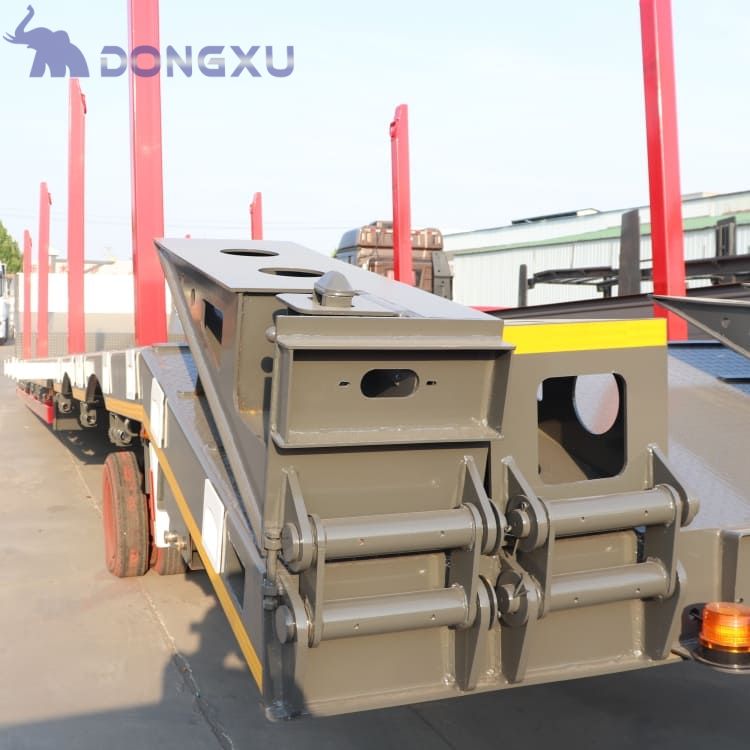

Ramp: Spring ramp
The company was founded in 2008, after 16 years of development, has become one of the best semi-trailer manufacturers in China. Owned 2 factories, covering an area of more than 60,000 square meters and employing more than 200 people, annual production capacity of more than 10,000 semi trailers ...[ read more ]
